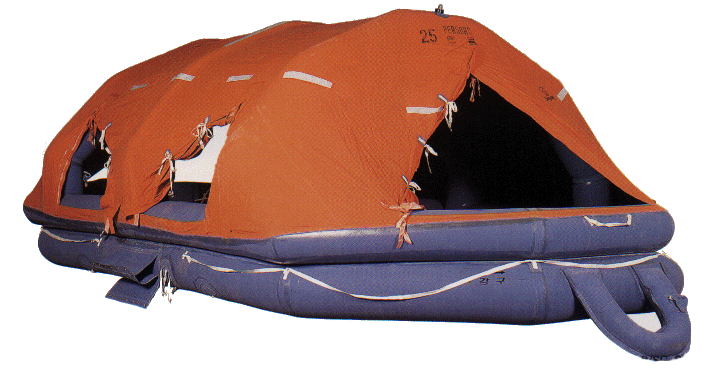

INFLATABLE LIFE RAFTS
- TYPE APPROVAL BY K.M.P.A
- The inflatable liferaft feature structures and accessories as required under the International Convention for the Safety og Lives at Sea(SOLAS) LSA Code. 4.2In case of vverturn this product is construct auto-self-righting.Remains in good operating condition even after being dropped from a height of 24m.
- Inflation by liquified CO©ügas (or sometimes mixed N©ügas)
- Boarding Ramp to be inflasted automatically and double-deck canopy which protection.
- Considering stability introduced large size water pockets.
- Will achieve complete inflastion within 10 to 25 seconds.
- Functions normally in ambient temperatures between +65¡É and -30¡É.
- Maintains good condition even after 30 days exposure to any sea weather condition.
|
Items |
SG-SR-25 |
|
Capacity(persons) |
25 |
|
Dimension(m) |
L 5.99, W 2.75 |
|
Full height of Canopy(m) |
2.00 |
|
Floor Area(m²) |
9.55 |
|
Total Buoyancy(kgf) |
8,950 |
|
Gas Charge(Kg) |
6.19×2psc |
|
Total Weight(Kg) A Pack |
226 |
|
Total Weight(Kg) B Pack |
162 |
|
Container Dia.(m) |
0.75¥õ×1.20 |
|
No. |
Items |
SOLAS"A" Pack |
SOLAS"B" Pack |
|
1 |
Buoyant |
1 EA |
1 EA |
|
2 |
Knife |
2 EA |
2 EA |
|
3 |
Buoyant Bailer |
2 EA |
2EA |
|
4 |
Sponge |
2 EA |
2EA |
|
5 |
Sea-Anchor |
2 EA |
2EA |
|
6 |
Buoyant Paddle |
2 EA |
2EA |
|
7 |
Repair Appliance |
1 SET |
1 SET |
|
8 |
Food Ration |
10,000KJ/person |
- |
|
9 |
Fresh Water |
1.5§¤/person |
- |
|
10 |
Drinking Vessel |
1 EA |
- |
|
11 |
First-Aid Outfit |
1 SET |
1 SET |
|
12 |
Anti-Seasickness Medicine |
48 hr/person |
48 hr/person |
|
13 |
Seasickness Bag |
1 bag/person |
1 bag/person |
|
14 |
Thermal Protective Aids |
2-3 EA |
2-3 EA |
|
15 |
Tin Opener |
3 EA |
- |
|
16 |
Safety Scissors |
1 EA |
- |
|
17 |
Whistle or Equivalent Signal |
1EA |
1 EA |
|
18 |
Fishing Tackle |
1 SET |
- |
|
19 |
Immediate Action Manual |
1 SHEET |
1 SHEET |
|
20 |
Survival Manual |
1 VOL |
1 VOL |
|
21 |
Life Signal Extlanatory Table |
1 VOL |
1 VOL |
|
22 |
Rocket Parachute Flare |
4 EA |
2 EA |
|
23 |
Red Hand Flare |
6 EA |
3 EA |
|
24 |
Buoyant Smoke Signal |
2 EA |
1EA |
|
25 |
Water Proof Electric Torch |
1 EA |
1EA |
|
26 |
Daylight Signalling Mirror |
1EA |
1EA |
|
27 |
Radar Reflector |
1EA |
1EA |
|
28 |
Topping-up Pump or Bellows |
1EA |
1EA |
